Progressive Helices
by Thingiverse
Last crawled date: 5 years, 3 months ago

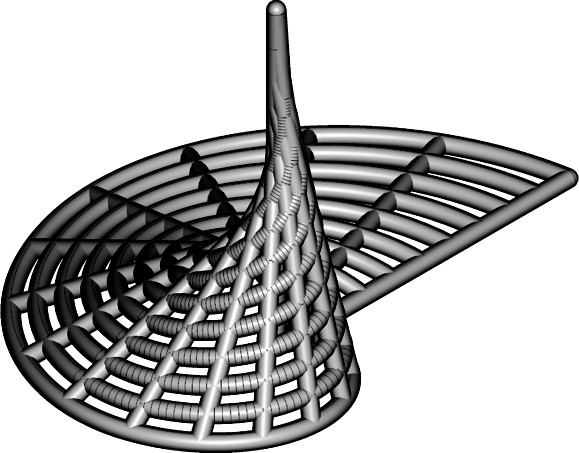

Several helices. Each helix has the same inner radius, zero, and progressive outer radii, from 1 to 10. The height at each outer radius is zero, the height at each inner radius equals the 10 minus the outer radius. An array of support brackets are added at incremental angles.
I modeled this from an image I found on the internet. Model was created in Microstation Connect.
I modeled this from an image I found on the internet. Model was created in Microstation Connect.
