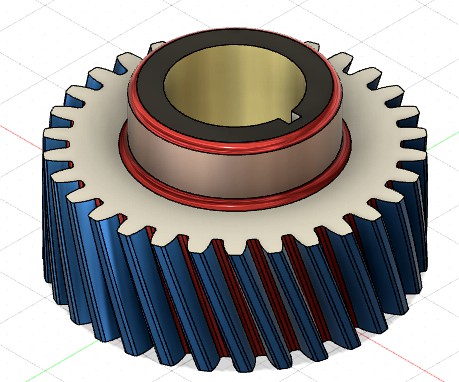

Helical Gear
by 3dExport
Last crawled date: 2 years, 10 months ago
Helical gears are one type of cylindrical gears where the teeth are curved into a helix shape. Compared to spur gears (straight teeth), properly designed helical gears can have a larger total contact ratio which can improve vibration and noise. Badly designed helical gears can be noisier than well designed spur gears.
