Printrbot Helical Extruder Gears by nseward
by Thingiverse
Last crawled date: 4 years ago

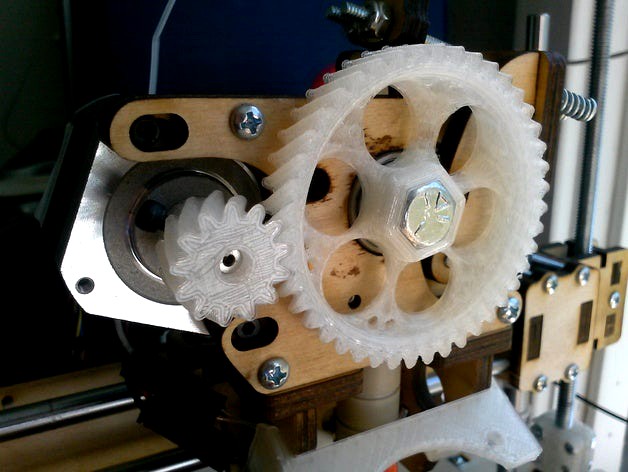

Since herringbone gears need to have one side floating, I have designed some helical gears to replace the printrbot extruder gears. Helical gears provide smoother power transmission than spur gears. My prints improved immediately after switching from the lasercut spur gears.
