Working Turbo v1.1 OUTDATED by KimboCake
by Thingiverse
Last crawled date: 3 years ago
IM NOT 100% SURE IF THIS FILE IS STILL ANY GOOD, PLEASE LETT ME KNOW IF U PRINTED IT AFTER 2019 SO I CAN UPDATE THIS TEXT TO STILL WORKING.
ALSO U CAN NOW REMIX IT IF YOU WANT.
Working Turbo Fantilator v1.0- Scale Working Model by KimboCake.
Update v1.1: Uploaded an Airfilter, and an exhaust system, working with 2 m3 bolts and nuts. Exhaust is in 3 parts, part 3 is not really needed,only if u want it, u can even print part 2 and 3 multiple times, depends on how big and long u want the exhaust to be.
I've used some parts of this model:http://www.thingiverse.com/thing:1359560
But i could not get it to work, so changed most of it. Now it works without much needed!
Summary

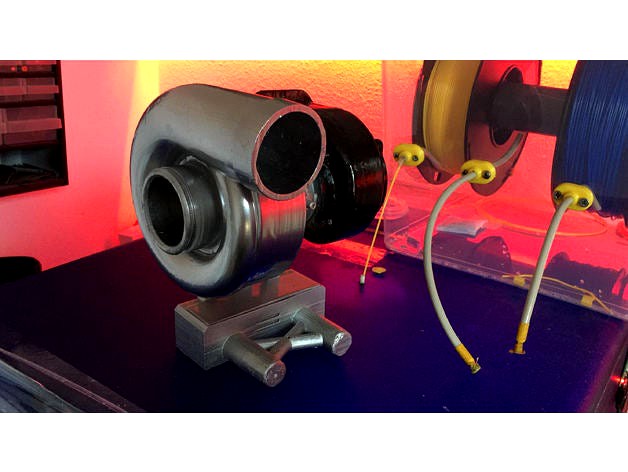

Working model of a TurboCharger.
Over 72 hours of printing!!!
Hardware kits are available for about €20 max, you can buy the parts i used from here:
Electric Engine:https://www.conrad.nl/nl/motraxx-xslot-race-143-brushed-mini-elektromotor-24000-omwmin-238825.html
Rocker Switch:https://www.conrad.nl/nl/a12131121000-wipschakelaar-250-vac-10-a-1x-uitaan-vergrendelend-1-stuks-701661.html
As for the battery, you could use anything as long as the voltage is between 6 and 12v.
I had this old RC battery laying around for years, its a 7.4v 800mhz battery.
The electric motor that powers it is a 6v / 12 V 24000rpm brushed motor.
Shaft Size : 1.5mm
Motor Body Length : 19.4mm/ Width : 14.8mm/ Height : 10.8mm
Print Settings
Printer Brand: Gembird i3
Printer: Prusa i3
Rafts: Brim (not necessary)
Supports: Yes, not all parts tho.
Resolution: .2mm
Infill: 30%
Notes:
Recommended to print the turbo housing, turbo mid, and turbo exhaust on highest quality for better looks.
Please do not steal my design, and give credits to me.
Tips are welcome, but not necessary. Feel free.
This project might get more
