Rocking Body Walking Robot Drone #5 steerable version by Rick100

Last crawled date: 3 years, 1 month ago

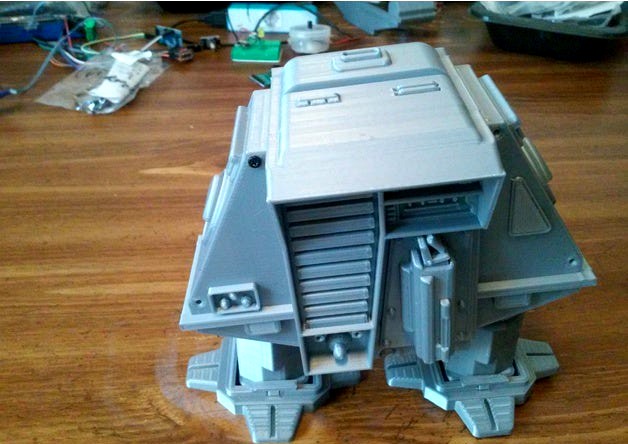

This is my remix of Robothuts "Rocking Body Walking Robot Drone #5". I built his original design and several others he's posted to Thingiverse. His original design is a pin walker driven by one motor/gearbox. It walks in a straight line when you turn it on. I decided to build a remote controlled steerable version. It has two N20 gearmotors driven by a L9110S dual H bridge. An Arduino Pro Mini controls the motors with feedback from a cam and switch on each leg. The Arduino uses the feedback to keep the motors in sync. The Arduino receives commands from an IR remote through a TSOP4838. The IRLIB2 Arduino library is used to decode the 12 bit Sony codes. The universal remote is set for a Sony VCR. Power is provided by the guts of a 2600 MAH power bank. The 18650 cell has solder tabs which is important to make everything fit in the robot. The charge board in the power bank also boosts the cells voltage to 5 Volts. It works well even it 's a little slow. The motors are rated at 30 RPM at 6 Volts.
The drone/robot was printed on an Ender 2 and a FolgerTech 2020.
The 3D printed parts needed from RobotHuts design are:
footclip 2
latch 1
bodyBack 1 / the door will be replaced
foot 2
leg 2
bodyFront 1
The motor frame and body frame are the 2 big parts that need replacing. The rest of the parts are clamps, mounts, and cams. The 2 cams are marked left and right. The tilt cam goes on the right side and is keyed. The battery clamp is what the charge board is mounted to with hot glue. The switch mounts are the stepped plates that the switches are mounted to. You need 2 of them. The switch mount is then mounted to the motor clamp with screws and nuts, and adjusted using the slots. There are a left and right motor clamp. The V on the motor clamp points to the front of the robot. The leg pins are a different length than robotHuts original design and you need 2. The arduino mount and mtr_drv_clamp are stacked with the L9110S and Arduino and screwd to the lower holes in the motor frame. The video should provide enough details if anyone should want to build one. The wiring is pretty simple so I haven't included a schematic. The Arduino source code includes the pin connections between the Arduino, ML9110S, TSOP4838, and switches. The common of each switch goes to ground and the N.O. terminals go to the Arduino input pins. I used a piece of strip board to make a power distribution bus. This is where the power pins of the boards and sensors are soldered.
The Arduino program uses the IRLIB2 library. I can't remember for sure how I installed the library but I think I followed these instructions:https://learn.adafruit.com/using-an-infrared-library/hardware-needed
You may need to use the Decoding IR data section of that page to get the codes your remote is sending. You can edit my Arduino program for your particular codes. I set my universal remote to a Sony VCR. It outputs 12 bit sony codes. I've commented out a lot of serial debugging lines that can be uncommented if needed.
The program has a switch debounce routine that was necessary for it to work at all.The '#define BIT_DEBOUNCE_COUNT 8' at the top defines how many times the switch state has to remain unchanged before the switch state is updated. It uses shift registers to keep track of the bit trains from the switches.
This is not an easy build. Finding the right size screws seems to take a lot of time. Most of the screws used are 2mm X 12mm self tapping or 3mm X 12mm machine screws. Some had to be cut shorter. The power switch I used is smaller than the holes in RobutHut's design. I slotted the holes in the switch to make it fit. A larger switch would probably interfere with the internal moving parts anyway. There is not much room inside for the electronics.
I had to modify body frame using the stl RobotHut posted. Fusion 360 is not very good at this and neither am I. In the importing and reduction of the stl, some of the detail seems to have gotten lost. There is one artifact visible on the print. It is a faint triangle on the side of the body. I spent a lot of time trying to clean up the body after converting it from the mesh. I used 3D builder to fix the non manifold errors but Prusa Slic3r says 2 remain. All the slicers I tried will still slice the model correctly.
My video:https://www.youtube.com/watch?v=a80CQ_oQmnA
Parts I used:
roller switch:https://www.banggood.com/5Pcs-AC-125V-1A-Mini-SPDT-Micro-Switch-Long-Hinge-Roller-p-998613.html
slide switch:https://www.banggood.com/10Pcs-Black-Mini-Size-SPDT-Slide-Switches-On-Off-100V-2A-DIY-Material-p-1011746.html
Arduino Pro Mini:https://www.banggood.com/3Pcs-ATMEGA328-328p-5V-16MHz-Arduino-Compatible-Nano-Size-Module-Board-p-1006451.html
TSOP4838 IR receiver:https://www.banggood.com/5Pcs-IR-Receiver-Infrared-Radiation-Module-38KHz-TSOP4838-DIP-3-p-945168.html
Update:
I built an Attiny based IR remote for the robot:https://www.thingiverse.com/thing:3566978
I replaced the Arduino program on this page with the same program on that page. It still works with a universal remote. The program also has some bug fixes.
