3rd Update 4th of November 2020:
designed a new friction brake using the same M10 x 30mm screw. The brake consists of 2 printed parts. First one is a new base mount and 2nd one is a sliding block with a pen spring inside. The front of the sliding block is covered by a piece of felt. With this design a slight unround mounted turntable (upper part of the Dobson mount) will be compensated. Maybe you need to file a little bit the sides of the sliding block until it fits smooth into the base mount.
2nd Update 4th of Nov 2020:
printed the 5mm adapter disc now and it seems that this is the better solution than the 6mm disc.
UPDATE 4th of November 2020:
added 2 alternative adapter discs with 5mm and 5.5mm hight. Did not print and check until today but maybe the 6mm disc is too high. Please check. I will do in the next days. However it works also with the 6mm disc but I want to optimize it.
ENGLISH (short), ask if you have a question or try to translate via Google translator.

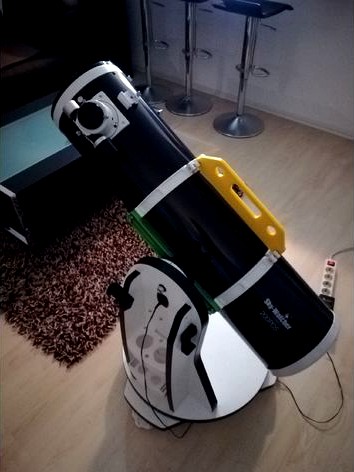

In general a modification of my OMEGON Dobson PUSH+ mount. I exchanged the Teflon glider by a huge 450mm roller bearing (40€ = approx. 50$). Also added a 6mm adapter plate to the encoder disc, added a "break" (add felt to the end of the screw), a new longer 30mm M10 screw for the encoder plate and a grip for this screw.
The "long" part is a tool needed to find the center of the 450mm roller bearing. After you found the exact middle, fix the bearing to the bottom plate with 6 wood screws.
The "break" is needed because the Dobson mount rotates too smooth :-) With the screw and the front side attached felt you can easily adjust the "break power". I will add a grip for this screw as well as a counter nut in the next days.
So this thing is under construction.
The bigger feets are another design I will offer in the next days here on Thingiverse.
GERMAN:
Eine einfach herzustellende Modifikation meiner OMEGON Push+ Dobson Montierung.
Diese Modifikation ersetzt die relativ schwergängigen Teflonscheiben gegen einen sehr leichtgängigen Drehbeschlag: https://www.heimwerkertools.com/schrankausstattung/wohnraum-ausstattung/medien-aufbewahrung/5616/drehbeschlag-ciak-aus-metall-3600-drehbar-tragkraft-300-kg
Dises Teil ist auch bei AMAZON erhältlich.
Vor der Montage ist der Mittelpunkt des Drehbeschlags zu ermitteln. Dazu dient das Ausrichtwerkzeug. Dieses wird in die Bodenplattenbohrung eingesetzt und gedreht, bis der Drehbeschlag mittig ausgerichtet ist. Dieser dann noch so ausrichten, dass die Befestigungsbohrungen in etwas symmetrisch ausgerichtet sind. Dann den Beschlag mit kleinen Holzschrauben sichern. Am besten hierfür vorher kleine Vorbohrungen setzen.
Nun die Adapterplatte aufstecken und an die Encoderplatte kleben mit etwas Klebstoff oder doppelseitigem Klebeband.
Nun wird noch eine längere M10 (30mm Typ) Schraube benötigt. Dafür kann dann auch der Drehgriff gedruckt werden. Dieser hält beim anziehen der Schraube von selbst oder dieser wird eingeklebt.
Da die Montierung nun sehr leichtgängig ist, empfiehlt sich der Einbau der Bremse. Dazu die 3 Teile drucken (Winkel, Kontermutter, Schraubengriff). Dann mithilfe einer Holzschraube der Teflonscheiben im vorhandenen Bohrloch befestigen. Die Schraube mit einer Filzscheibe bekleben und die Bremswirkung einstellen. Mithilfe der Kontermutter kann die Schraube fixiert werden. (Kontermutter und Schraubengriff sind noch in Entwicklung. Daher ist das hier "Under construction.)
Update:
die 6mm Adapterplatte habe ich gegen eine 5mm Platte getauscht und zusammen mit einer 5,5mm Variante hier eingestellt. Die 5mm Platte paßt bei mir wesentlich besser. Die alte 6mm Platte war zu dick.
Ausserdem habe ich die Reibungsbremse komplett erneuert. Diese besteht neben der 30mm M10 Schraube nun aus einer neuen Basisplatte, einem Gleitblock mit Filz an der Frontseite sowie einer eingesteckten Kugelschreiberfeder. Damit funktioniert die Bremse wesentlich gleichmäßiger, da eine unrunde Dobson Drehplatte ausgeglichen wird. Ich empfehel, den Kantenschutz an der Naht ggf. mit einer feinen Feile etwas zu glätten (Übergang).
designed a new friction brake using the same M10 x 30mm screw. The brake consists of 2 printed parts. First one is a new base mount and 2nd one is a sliding block with a pen spring inside. The front of the sliding block is covered by a piece of felt. With this design a slight unround mounted turntable (upper part of the Dobson mount) will be compensated. Maybe you need to file a little bit the sides of the sliding block until it fits smooth into the base mount.
2nd Update 4th of Nov 2020:
printed the 5mm adapter disc now and it seems that this is the better solution than the 6mm disc.
UPDATE 4th of November 2020:
added 2 alternative adapter discs with 5mm and 5.5mm hight. Did not print and check until today but maybe the 6mm disc is too high. Please check. I will do in the next days. However it works also with the 6mm disc but I want to optimize it.
ENGLISH (short), ask if you have a question or try to translate via Google translator.
In general a modification of my OMEGON Dobson PUSH+ mount. I exchanged the Teflon glider by a huge 450mm roller bearing (40€ = approx. 50$). Also added a 6mm adapter plate to the encoder disc, added a "break" (add felt to the end of the screw), a new longer 30mm M10 screw for the encoder plate and a grip for this screw.
The "long" part is a tool needed to find the center of the 450mm roller bearing. After you found the exact middle, fix the bearing to the bottom plate with 6 wood screws.
The "break" is needed because the Dobson mount rotates too smooth :-) With the screw and the front side attached felt you can easily adjust the "break power". I will add a grip for this screw as well as a counter nut in the next days.
So this thing is under construction.
The bigger feets are another design I will offer in the next days here on Thingiverse.
GERMAN:
Eine einfach herzustellende Modifikation meiner OMEGON Push+ Dobson Montierung.
Diese Modifikation ersetzt die relativ schwergängigen Teflonscheiben gegen einen sehr leichtgängigen Drehbeschlag: https://www.heimwerkertools.com/schrankausstattung/wohnraum-ausstattung/medien-aufbewahrung/5616/drehbeschlag-ciak-aus-metall-3600-drehbar-tragkraft-300-kg
Dises Teil ist auch bei AMAZON erhältlich.
Vor der Montage ist der Mittelpunkt des Drehbeschlags zu ermitteln. Dazu dient das Ausrichtwerkzeug. Dieses wird in die Bodenplattenbohrung eingesetzt und gedreht, bis der Drehbeschlag mittig ausgerichtet ist. Dieser dann noch so ausrichten, dass die Befestigungsbohrungen in etwas symmetrisch ausgerichtet sind. Dann den Beschlag mit kleinen Holzschrauben sichern. Am besten hierfür vorher kleine Vorbohrungen setzen.
Nun die Adapterplatte aufstecken und an die Encoderplatte kleben mit etwas Klebstoff oder doppelseitigem Klebeband.
Nun wird noch eine längere M10 (30mm Typ) Schraube benötigt. Dafür kann dann auch der Drehgriff gedruckt werden. Dieser hält beim anziehen der Schraube von selbst oder dieser wird eingeklebt.
Da die Montierung nun sehr leichtgängig ist, empfiehlt sich der Einbau der Bremse. Dazu die 3 Teile drucken (Winkel, Kontermutter, Schraubengriff). Dann mithilfe einer Holzschraube der Teflonscheiben im vorhandenen Bohrloch befestigen. Die Schraube mit einer Filzscheibe bekleben und die Bremswirkung einstellen. Mithilfe der Kontermutter kann die Schraube fixiert werden. (Kontermutter und Schraubengriff sind noch in Entwicklung. Daher ist das hier "Under construction.)
Update:
die 6mm Adapterplatte habe ich gegen eine 5mm Platte getauscht und zusammen mit einer 5,5mm Variante hier eingestellt. Die 5mm Platte paßt bei mir wesentlich besser. Die alte 6mm Platte war zu dick.
Ausserdem habe ich die Reibungsbremse komplett erneuert. Diese besteht neben der 30mm M10 Schraube nun aus einer neuen Basisplatte, einem Gleitblock mit Filz an der Frontseite sowie einer eingesteckten Kugelschreiberfeder. Damit funktioniert die Bremse wesentlich gleichmäßiger, da eine unrunde Dobson Drehplatte ausgeglichen wird. Ich empfehel, den Kantenschutz an der Naht ggf. mit einer feinen Feile etwas zu glätten (Übergang).
