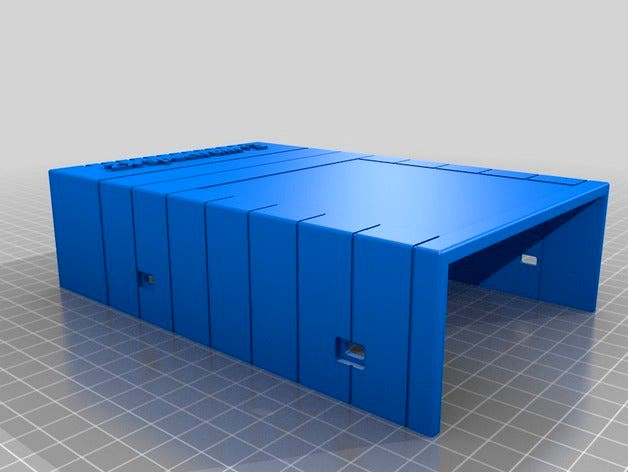

This is an external FDD enclosure for the ZX Spectrum +3 computers.
I have designed two versions: one with stronger buttresses on top and one without them.
The rear includes two holes for 6mm diameter switches to select floppy drive unit A or B and to select the floppy side A or B. It also includes an 8mm diameter hole for the power connector of the floppy drive.
For the 34-pin cable, a gap of 1mm thick is formed at the rear when the two parts are closed (backside down) allowing the cable to go out without problems.
I have designed two versions: one with stronger buttresses on top and one without them.
The rear includes two holes for 6mm diameter switches to select floppy drive unit A or B and to select the floppy side A or B. It also includes an 8mm diameter hole for the power connector of the floppy drive.
For the 34-pin cable, a gap of 1mm thick is formed at the rear when the two parts are closed (backside down) allowing the cable to go out without problems.
