Zortrax M200 (M200 Plus) Top Cover (temp and fumes management) by stv-is-it
by Thingiverse
Last crawled date: 4 years, 5 months ago
Here only one part for your print test
All parts in STL here: https://www.redpah.com/product/4045 (with a small contribution)
Assembly video: https://youtu.be/mR9bpB0uexM

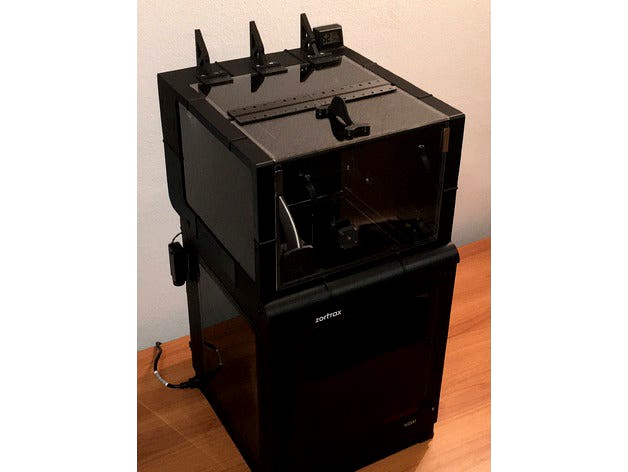

It is a special TopCover that allows to improve and stabilize the temperature of the printing area and, with 4 possible accesses, to manage the internal air for:
Fume extraction (external extractor connection)
Dehumidification (air circulation with external dehumidifier)
Temperature change (air circulation with external hot/cold air generator)
Basic maintenance operations do not need to be removed
Disappeared the problems of warping and layer separation, and also the odor while printing (with fume extraction).
All parts were printed in Z-HIPS, plus some items "READY TO USE" purchased on Amazon.
Everything was assembled with: drill/screwdriver, pliers, cutter, miscellaneous screws
Amazon parts:
1x Transparent Acrylic plate DIN A4 210x297x3 mmhttp://amzn.to/2GO6DAs
1x Transparent Acrylic plate DIN A3 420x297x3 mmhttp://amzn.to/2FZ94ip
3x Black Acrylic plate DIN A4 210x297x3 mmhttp://amzn.to/2psFr2M
1x WINGONEER 2-in-1 Digital LCD integrated thermometer hygrometer Blackhttp://amzn.to/2psJ4Wj
1x Magnetastico® | 10 pieces self-adhesive neodymium magnets N52 40x10x1 mmhttp://amzn.to/2FXydKp
Description files name:
CFD (Center Front Down)
CRD (Center Rear Down)
CRU (Center Rear Up)
LCD (Left Center Down)
LCU (Left Center Up)
LFD (Left Front Down)
LFU (Left Front Up)
LRD (Left Rear Down)
LRU (Left Rear Up)
RCD (Right Center Down)
RCU (Right Center Up)
RFD (Right Front Down)
RFU (Right Front Up)
RRD (Right Rear Down)
RRU (Right Rear Up)
I recommend that you print all the pieces in the same direction to get the same errors in the XYZ axes and not have discrepancies during assembly.
The space to fix screws and bolts is reduced but no need to tighten much.
Use a little glue between the joints to improve the seal.
Material: Z-HIPS
Infill: 30%
Holes: 0.20
Pattern: PATT 2 (octagon)
Layer: 0.19
Support: LITE
Smart Bridge: YES
