This is a (fools's? naive?) minimalistic Z extender for your cupcake cnc.
Designed to be quick to print/assemble/install without having to dismantle your cupcake.
WARNING !!! It dramatically decreases X and Y !
Z: Up to 220mm
X: Up to 65mm (it could easily go up to 80mm)
Y: Up to 60mm (55mm?)
Those are sizes for the whole length. At some Z levels X and Y may be bigger.
However it uses the whole length of the Z rods (there's a lot of designs that can fit here) and you can switch from this thing to the standard cupcake setup in a couple of minutes.
More pictures: http://aubenc.imgur.com/cupcake_cnc_zextender#mdmpi

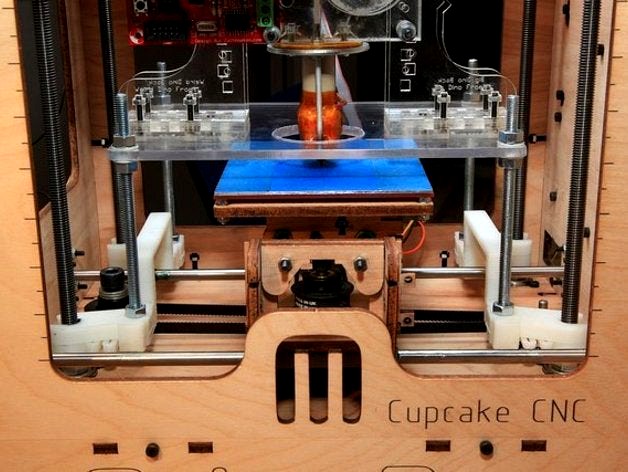

(The example in the picture is a 220mm tall print)
"z-ext.zip" contains all the other files available to download.
