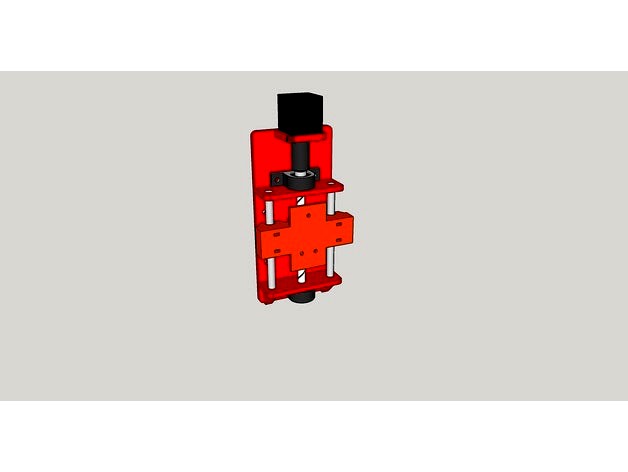

Z Carriage for Eleksmaker laser A3/A5 by alebrescia

Last crawled date: 4 years, 4 months ago

Designed to add a Z movement to my eleksmaker laser. (you need to upgrade to MANA (non SE) or CNC Shield to use it)
what you need:
2x - 110x8mm rods
1x - 170x8mm Stainless Steel Lead Screw Rod with Nut
2x - linear bearing (lm8uu)
2x - KP08 55x13x29mm Zinc Alloy Pillow Block Bearing
( all above in one kit: https://goo.gl/5oxCvE )
1x - Nema17 motor: https://goo.gl/gVgPXz
4x - tiny cable ties to lock lienar bearing to carriage
x - Some screw and nuts m3
See my first test in action: https://youtu.be/PCumGntcTvM
