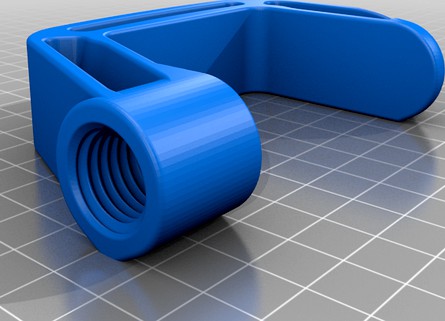

Yet another C-Clamp
print without support
The threads are regular metric M16
so you can clean up the threads with M16 screw and nut
clamping range: 0 - 50 mm
If you like it please "Post a Make"
In my first design the screw was M10 - was to weak, bend and break
so i changed it to M16
Printsize: 103 x 69 x 24 mm
The threads are tight fit - depending on the printersettings and the filament they need more or less cleanup
(fit perfect with my printersettings, tested with a threaded rod and ordinary nuts)
I've added files of nuts vertical & horizontal and screw for quick testprints
at: https://www.thingiverse.com/thing:4770302
