XT30, XT60, XT90 Charge Block by bwegner
by Thingiverse
Last crawled date: 4 years ago

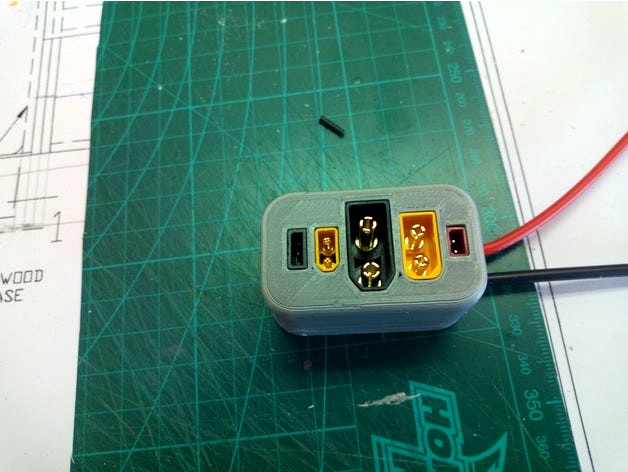

Charge bock for the 3 x XT battery connections. This eliminates 3-5 charge cables from your charger easily allowing you to connect an XT30, XT60, XT90, JST or JST-SH Servo Plug. You will need to solder up some plugs and connect a positive and negative lead to your charger. Plugs were glued into the block one the short leads were soldered to the plugs. A 4.5mm hole was drilled thru the XT90 terminals for the connecting cable (See picture). you will need to take a bit of time and care with the soldering.
"NEVER connect more than one battery to the charge block at the same time."
"NEVER connect more than one battery to the charge block at the same time."
