X-axis strain relief and build platform wire guide by Ellindsey
by Thingiverse
Last crawled date: 4 years, 7 months ago
An update on the previous sedign, this routes the X stage wire to the side instead of straight out, and has notches for zip-tie securing.

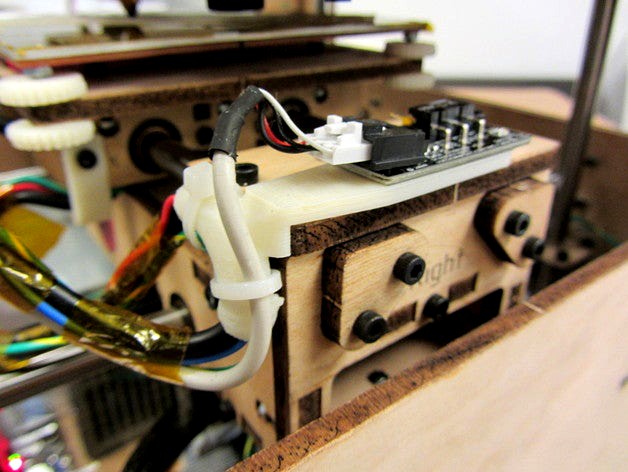

This helps route the wires coming off the X stage on the ThingOMatic. The heated build platform wire can be secured to this piece with two zip-ties, to help route it such that it doesn't get caught or pinched as the X and Y stages move to the ends of their travel envelope. It also secures the cable coming off the X stage travel limit switch.
Still a work in progress as I tweak the design.
This helps route the wires coming off the X stage on the ThingOMatic. The heated build platform wire can be secured to this piece with two zip-ties, to help route it such that it doesn't get caught or pinched as the X and Y stages move to the ends of their travel envelope. It also secures the cable coming off the X stage travel limit switch.
Still a work in progress as I tweak the design.
