Workmate Pivot Nut by rtrivet
by Thingiverse
Last crawled date: 4 years, 7 months ago

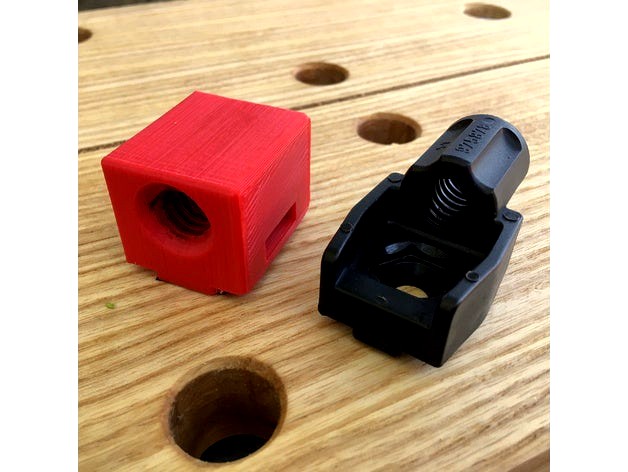

This is a pivot nut that I designed for my grandfather's, 1970's vintage Black & Decker 200 Workmate. The part number for the original injected-molded part, at least the one I have, is 975878. I've attached a photo that compares the two.
In use the pivot nut screws on the Workmate's vice screw. The sliding portion of the Workmate top then attaches to the pivot nut with a 5/16-inch screw that screws into a nut pressed into the square pass-through.
This was one part of a larger Workmate restoration, which was a humbling, learning-experience, so if you find the part helpful, please comment! And if you don't, well, my best wishes to your own ACME, double-start, pivot nut design and development efforts.
Thanks for stopping by.
In use the pivot nut screws on the Workmate's vice screw. The sliding portion of the Workmate top then attaches to the pivot nut with a 5/16-inch screw that screws into a nut pressed into the square pass-through.
This was one part of a larger Workmate restoration, which was a humbling, learning-experience, so if you find the part helpful, please comment! And if you don't, well, my best wishes to your own ACME, double-start, pivot nut design and development efforts.
