Why do I publish this? There are many like-minded people here who, like me, finding Wera tools very good. My goal is that this project will be further developed and that other ideas will also be brought in. It is necessary for all changes to be published. I would ask for that.
I took this box from Thingiverse (https://www.thingiverse.com/thing:4094861) as a basis and developed it further for my purposes. It was important for me to have the “must have tools” with me. The case should be as small as possible.

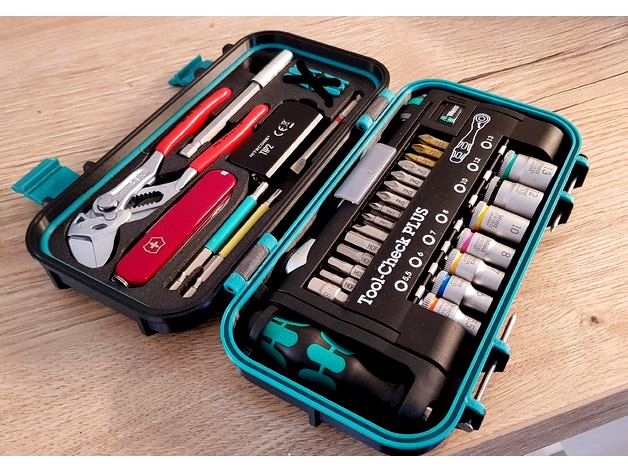

The box consists of an upper part, a lower part (optimized for the Tool Check Plus) and an insert for the upper part, which can be clicked and replaced by others. It is closed with 2 clips.
The following tools can be found in it:
Wera ToolCheck Plus
Knipex Cobra 8703125 or 8603125
Nitecore TIP2 lamp
Victorinox Ambassador
3 Broppe 75mm Bit (Aliexpress)
1 magnetic bit holder 100mm (https://de.aliexpress.com/item/1005001757416372.html...)
The tools are attached with magnets 8x Ø15x1.5mm and 14x Ø6x2mm.
I used 6x M2.5 x 30mm as a hinge. https://de.aliexpress.com/item/4000617333444.html...
Enjoy it, I would appreciate photos of the boxes and improvements!
Full print with 4x4x4 walls/top/bottom and 38% infil came to about 48g in weight.
Glue in lettering and spade. Star may need minor sanding but should push fit into the space tightly and not need anything else to secure it.
