Wemos D1 Weather Station 3in1 by Whitness
by Thingiverse
Last crawled date: 4 years, 4 months ago
I remixed the great original idea of weather station.

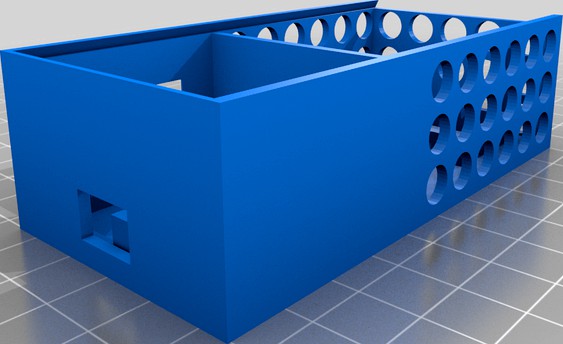

The size has been increased to accomodate 2 sensors and 1 display in addition to Wemos D1 module.
the whole concept is more robust in comparison with the original, but of course costs space and is not such minimalistic :)
Lid is also made thicker for better fitting as the original slipped away easily.
Sensors:
MH-Z19 co2 sensor
SHT-31 temperature and humidity sensor
Display SSD1306 128x64
TODOs:
improve Wemos D1 fit (required glue now)
improve MicroUSB connector hole
think about influence of Wemos heating on measured temperature
