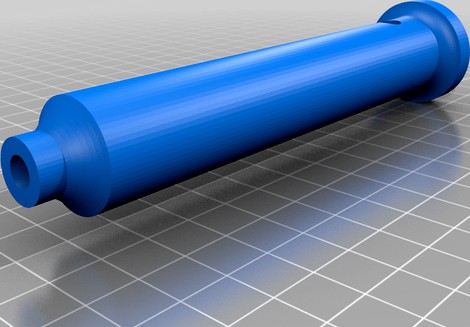

Weller DSX80 handle by tchleb
by Thingiverse
Last crawled date: 4 years, 4 months ago
I found a cheap Weller DSX 80 desoldering iron without the needed handle.
I used M3x4mm brass inserts for mounting the iron to the handle, as spacer i used M4 nuts.
As vaccum pump i used an old Mercedes Benz central looking pump.
This vaccum pump has more power as the stock weller vaccum pump.
I use this desoldering iron on my Unisolder 5.2 staion.
In the next version i'll make this handle more
ergonomic.
I recommend to print this handle from ABS.
