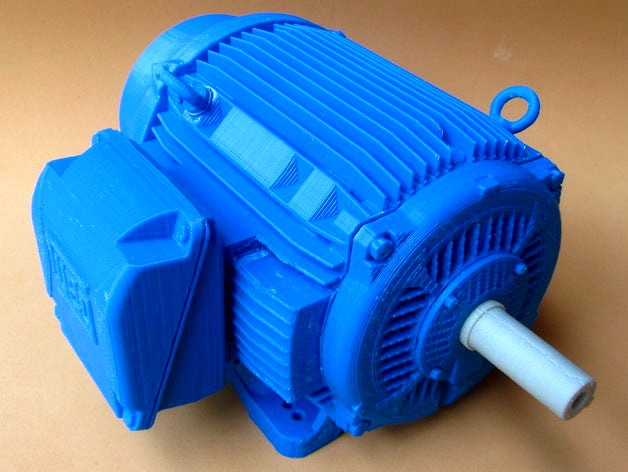

WEG Electric Motor W22 1:5 model, frame 364/5T 60HP by pauloblank
by Thingiverse
Last crawled date: 4 years, 6 months ago
Just a nice model to print.
The files are in 1:5 scale. I divided in printable parts, no support needed, some finishing needed.
I installed in the front plate a 24-8-8mm ball bearing to make the shaft to roll smooth.
source files at http://ecatalog.weg.net/drawings_2d_3d/index.asp?empresa=WMO&language=PT&cm=NEMA/W22_GENERAL_PURPOSE/26_FRAME_364_5T/STANDARD&shortcut=&path_relativo=&path_raiz=
