Waveguide LaVoce TN131.00 by axlson
by Thingiverse
Last crawled date: 4 years ago

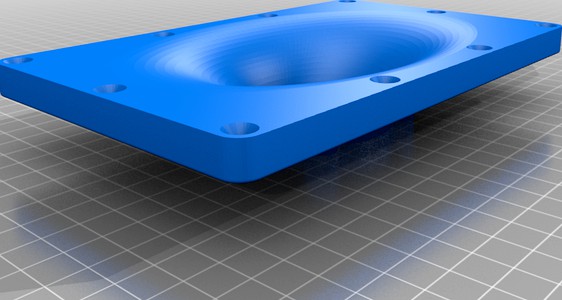

Waveguide for the LaVoce TN131.00.
Based on the design for 5" waveguide for SB Acoustics SB26 from Somasonus.
Scaled up to accomodate for the larger dome+surround of the LaVoce-tweeter and still retain the shape of the waveguide.
Bracket secures the tweeter to the waveguide with standard M4-screws.
(M4x0.7 of 16mm-20mm lenght)
This is a remix from SomaSonus Waveguides https://www.somasonus.net/
Added a version with 10mm thick faceplate to enable routing of adjacent driver and to make it a bit sturdier.
Based on the design for 5" waveguide for SB Acoustics SB26 from Somasonus.
Scaled up to accomodate for the larger dome+surround of the LaVoce-tweeter and still retain the shape of the waveguide.
Bracket secures the tweeter to the waveguide with standard M4-screws.
(M4x0.7 of 16mm-20mm lenght)
This is a remix from SomaSonus Waveguides https://www.somasonus.net/
Added a version with 10mm thick faceplate to enable routing of adjacent driver and to make it a bit sturdier.
