Wanhao Dial Indicator Storage Bracket by tonycwang
by Thingiverse
Last crawled date: 4 years, 7 months ago

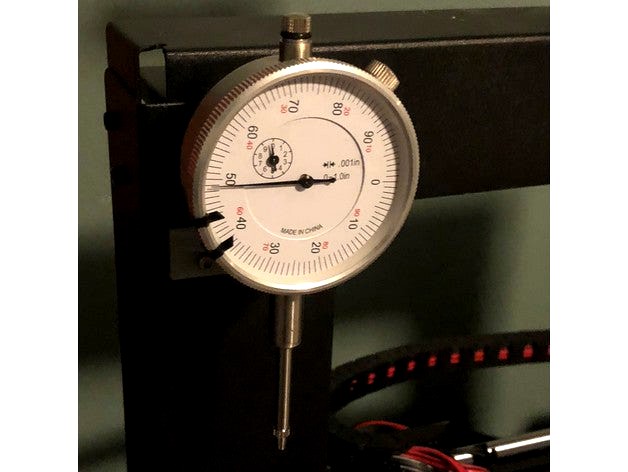

After creating a dial indicator mount, I now needed a place to store the dial indicator when not in use. The result is this thing.
As with the dial indicator mount, I designed the storage bracket specifically for a Harbor Freight Dial Indicator, but the storage bracket will work for any dial indicator with a 9.5mm stem.
To install remove the bottom two bolts on the left z-axis upright. Then use two M3x8mm bolts to install the storage bracket to the frame.
As with the dial indicator mount, I designed the storage bracket specifically for a Harbor Freight Dial Indicator, but the storage bracket will work for any dial indicator with a 9.5mm stem.
To install remove the bottom two bolts on the left z-axis upright. Then use two M3x8mm bolts to install the storage bracket to the frame.
