Walking leg mechanism

Last crawled date: 4 years ago

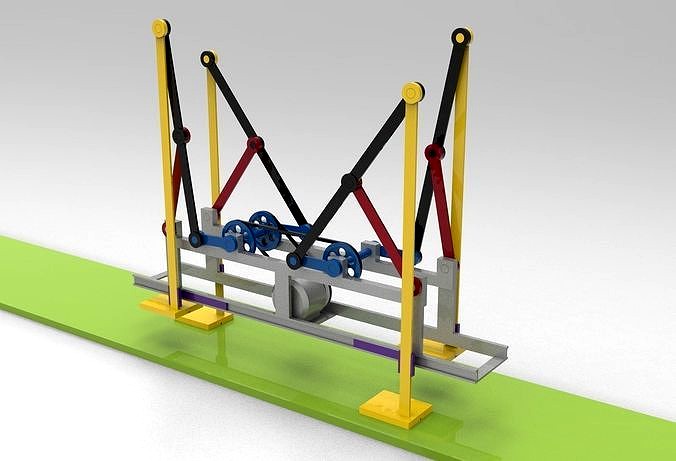

Here there are four Chebyshev's Lambda Mechanisms, to which four yellow legs are connected by revolution joints. Violet sliders keep the legs always vertical. Using prismatic joints is the weakness of this machine but the legs are supported more steadier.
