Wahoo Elemnt Bolt Mount
by Thingiverse
Last crawled date: 6 years, 1 month ago

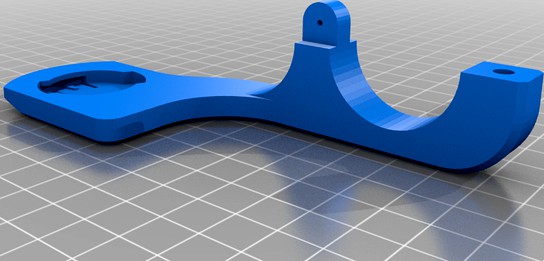

Mounting bracket for Wahoo Elemnt Bolt GPS.
This mount is slightly extended (approx. 33mm from stem face plate) so I can plug a charger cord in the back on ultra-endurance rides. Also moved the clamp to the right side, so I can put my light on the left and still easily reach the unit. I used a piece of an old spoke for the hinge, but any strong piece of wire should work. You'll probably need to drill it out accordingly. The clamping bolt hole is designed for M4x20.
Update:
As much as I like the hinge, it is a weak spot. It may work better with something besides PLA, but it's very easy to over-tighten the bolt and break the hinge. I'm adding a few more files that use two bolts instead. The TwoBolt file has space for hex nuts on the bottom, while the TwoScrew file does not - use threaded inserts or screw directly into the plastic.
