W12 Crankshaft
by Free3D
Last crawled date: 4 years, 2 months ago

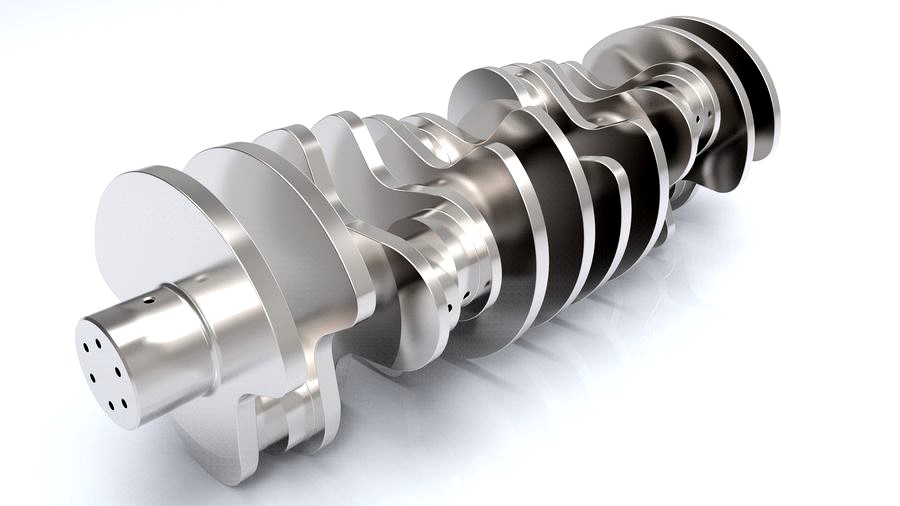

W12 Engine Crankshaft, all angles were accurately calculated based on the following firing sequence: 1-12-5-8-3-10-6-7-2-11-4-9
---------
Stroke: 90mm (45mm radius)
Pin Diameter: 50mm
Bearing Diameter: 50mm
Pin Offset: 12 degrees
Cylinder Spacing: 15mm for opposite cylinders, 75mm for consecutive cylinders.
---------
Stroke: 90mm (45mm radius)
Pin Diameter: 50mm
Bearing Diameter: 50mm
Pin Offset: 12 degrees
Cylinder Spacing: 15mm for opposite cylinders, 75mm for consecutive cylinders.
