Voxelab Aquila laser mount by eremeya
by Thingiverse
Last crawled date: 4 years, 5 months ago
This is a mount to mount a laser engraver on your Voxelab Aquila (and most likely Ender 3 v2).

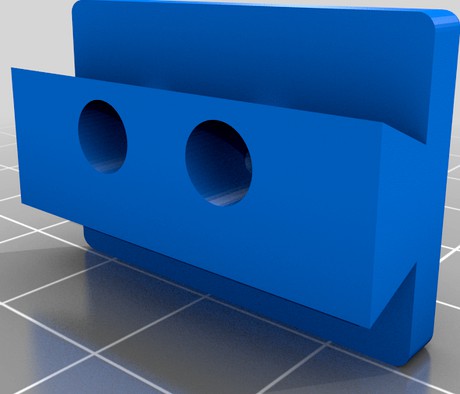

It utilizes a dovetail for easy removal of the laser when not in use. Mounts to the existing holes next to the extruder normally used by a bed leveling module. It uses the screws that hold the magnets to the laser module so you shouldn't need to buy any additional parts.
Part A mounts where the BLTouch normally mounts on the left side of the print head, part B mounts on the laser engraver, and part C is an optional part that can be used to mount the laser on the right side of the print head.
I printed this at .3mm layer height with 20% infill and 3 walls.
