Volvo crankshaft seal tool
by Thingiverse
Last crawled date: 5 years, 6 months ago
I made a Volvo crankshaft seal tool for a 47x35x6mm seal.
Tested and worked fine!

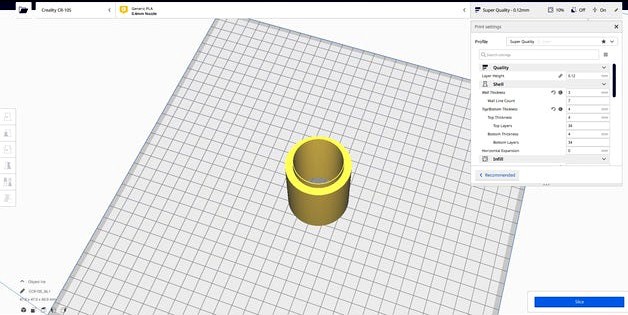

Printer: CR-10s
I printed this one with 0.12 layer hight.
Hotend: 210c
Bed: 75c
Speed: 40mm/s
I needed to file/lathe a little bit inside to get the exact measures beacuse the printer didnt get there.
Inside: 35,1mm
Outside: 36.1mm
Step hight: 6mm
Total Diameter: 47mm
Total hight 60mm
Press the seal on top then put it on the crankshaft and push it in with help of the big nut.
Tested and worked fine!
Printer: CR-10s
I printed this one with 0.12 layer hight.
Hotend: 210c
Bed: 75c
Speed: 40mm/s
I needed to file/lathe a little bit inside to get the exact measures beacuse the printer didnt get there.
Inside: 35,1mm
Outside: 36.1mm
Step hight: 6mm
Total Diameter: 47mm
Total hight 60mm
Press the seal on top then put it on the crankshaft and push it in with help of the big nut.
