Vive DAS Headphone Adapters for Oculus Quest 2 Elite Strap by sekazi

Last crawled date: 4 years, 3 months ago

If you have a Vive Deluxe Audio strap and are using the Oculus Elite Strap instead these adapters will allow you to use the headphones and attach them to the Oculus Elite Strap.
The Vive DAS Headphones easily remove from the DAS. You remove the foam then 1 screw for each headphone. The wire is then just put through a series of channels which is easily removed.

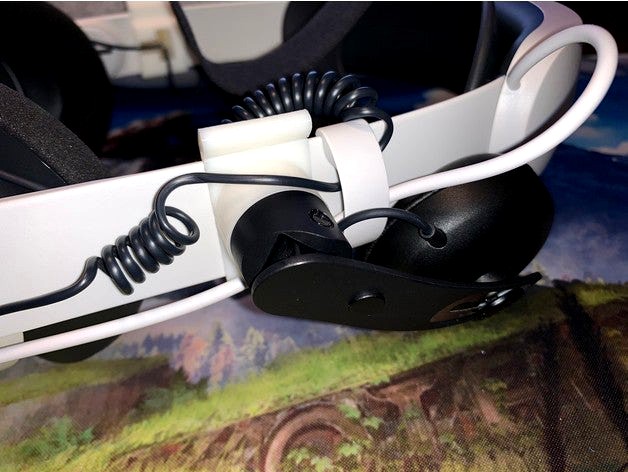

You will then use that screw to attach the adapters printed and snap the plastic cable guide on the back of the adapters. The adapters clip on the Elite Strap. You will need to have them attached covering the circle seen on the inside of the Elite Strap. You will also need to run the cable around the front facial interface. You cannot run it in the rear since the Oculus Elite Strap expands opposite of the Vive DAS and would result in a damaged cable.
If you need to disassemble the adapters the best way to remove the plastic cable guide from the back of the adapter is to use something to push them out from inside of the clip. You will be pushing through the hole that you used to screw the headphones onto the adapter.
I printed mine with supports and on a raft to preserve the clip from elephants foot.
