This is my first design for a 3D printed 'machine vice'.
[ The second version 'Vice 2X mini' with a more detailed description can also be found here ]
Its overall dimensions: length 150 mm - width 80 mm - height 40 mm.
The 'span' is 60 mm.
You can adjust the clamping jaws (green) in different angles and exchange them with other designs = individual adjustment.
The three big parts are filled with resin to make the vice a bit heavier and more stable (but you can also do without it).

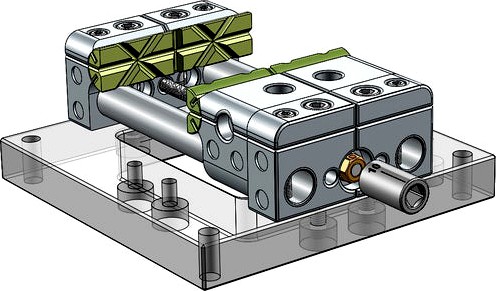

You can see everything else in the pictures.
And: - You can never have enough tools :-)
See you later. . .
Antonin T. Clark
[ exclusively designed for 3D printing ]
