VESC NRF Hand Controller by Peter210780
by Thingiverse
Last crawled date: 4 years, 7 months ago

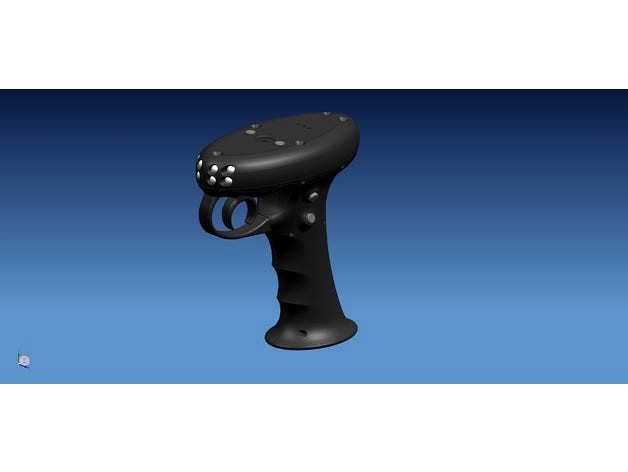

This is a custom hand controller for Benjamin Vedders NRF Nunchuk PCB.
Buildlog: http://www.electric-skateboard.builders/t/vesc-nrf-hand-controller/16212
Hardware: https://github.com/vedderb/nunchuk_rf_hw
Software: https://github.com/vedderb/nunchuk_mod
PCB on OshPark: https://oshpark.com/shared_projects/GKeNqY7y
Nunchuk RF buildlog by chaka: http://www.electric-skateboard.builders/t/vesc-nunchuk-rf/588/18
These are the components used:
Latching 6mm Push-Button-Switch for LED and Mode:http://www.ebay.de/itm/50Pcs-6-Pin-Mounted-10mmx5-8mmx5-8mm-Locking-White-Push-Button-Tact-Switch-/191677440869?hash=item2ca0dda365:m:mi9xE5ww9D6bHTb0bB74krQ
Non Latching Push-Button-Switch for reverse and cruise control:http://www.ebay.de/itm/25-x-DPDT-Momentary-6-Pin-DIP-Blue-Pushbutton-Flashlight-Switch-8mmx8mm-/291534361607?hash=item43e0cd5407:m:mzhqdg6JaTdOMfRkuNNMNdg
Thumb Stick without dead zone in the center:https://www.conrad.de/de/joystick-12-vdc-kunststoffhebel-print-alps-rkjxp-1224002-1-st-700620.html
NRF Long Range Module:http://www.ebay.de/itm/NRF24L01-Wi-Fi-Modul-mit-Antenne-2-4-GHz-Funkmodul-Arduino-kompatibel-56-/122034562710?hash=item1c69d3a696:g:W8sAAOSwEzxYZBOF
Hex coded switch 0-F:http://www.ebay.de/itm/Elma-07-0153-Horizontal-Hex-Coded-Switch-16-Position-0-F-6-Pin-Kodierschalter-/271767135206?hash=item3f469563e6:g:fWkAAOSwxYxU1LN8
Buildlog: http://www.electric-skateboard.builders/t/vesc-nrf-hand-controller/16212
Hardware: https://github.com/vedderb/nunchuk_rf_hw
Software: https://github.com/vedderb/nunchuk_mod
PCB on OshPark: https://oshpark.com/shared_projects/GKeNqY7y
Nunchuk RF buildlog by chaka: http://www.electric-skateboard.builders/t/vesc-nunchuk-rf/588/18
These are the components used:
Latching 6mm Push-Button-Switch for LED and Mode:http://www.ebay.de/itm/50Pcs-6-Pin-Mounted-10mmx5-8mmx5-8mm-Locking-White-Push-Button-Tact-Switch-/191677440869?hash=item2ca0dda365:m:mi9xE5ww9D6bHTb0bB74krQ
Non Latching Push-Button-Switch for reverse and cruise control:http://www.ebay.de/itm/25-x-DPDT-Momentary-6-Pin-DIP-Blue-Pushbutton-Flashlight-Switch-8mmx8mm-/291534361607?hash=item43e0cd5407:m:mzhqdg6JaTdOMfRkuNNMNdg
Thumb Stick without dead zone in the center:https://www.conrad.de/de/joystick-12-vdc-kunststoffhebel-print-alps-rkjxp-1224002-1-st-700620.html
NRF Long Range Module:http://www.ebay.de/itm/NRF24L01-Wi-Fi-Modul-mit-Antenne-2-4-GHz-Funkmodul-Arduino-kompatibel-56-/122034562710?hash=item1c69d3a696:g:W8sAAOSwEzxYZBOF
Hex coded switch 0-F:http://www.ebay.de/itm/Elma-07-0153-Horizontal-Hex-Coded-Switch-16-Position-0-F-6-Pin-Kodierschalter-/271767135206?hash=item3f469563e6:g:fWkAAOSwxYxU1LN8
