Hi,
This is a case for the VESC BLDC brushless motor controller for electric longboards. (http://vedder.se/2015/01/vesc-open-source-esc/)
There are 2 Versions. One for single VESC and one with additional place for an adruino nano (Used for a UART remote. For details please refer to: http://rollinggecko.github.io/ArduBoardControler/ and here https://endless-sphere.com/forums/viewtopic.php?f=35&t=73812).
I printed it with a 0.4 nozzle and 0.2 mm.
The PCB is hold in place by the same screws, that hold the case closed. M3 screws fit perfectly.

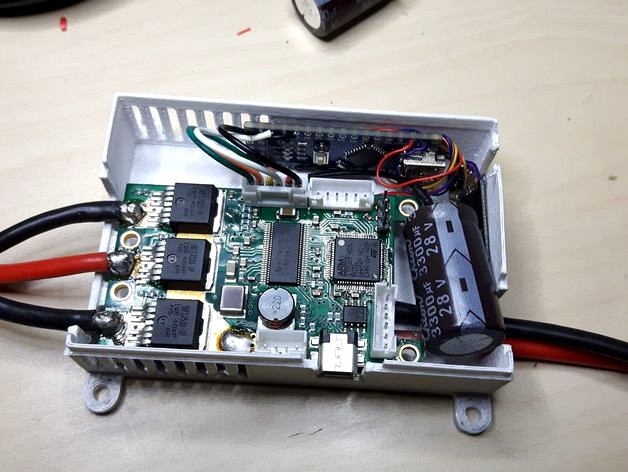

On the Photo you you can see how a 2200 µF Capacitor should be placed.
Keep track for new stuff here: https://www.facebook.com/berlincustomboards/
ChangeLog:
Changed both top covers. Reinforced the screw lead through by rounded corners. Avoid snapping them off.
