Vertex K8400 Double Z-Stage Mount by LuckyLuzz
by Thingiverse
Last crawled date: 4 years ago

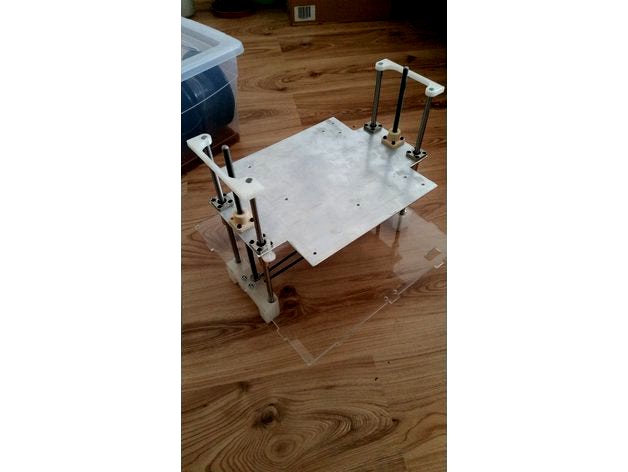

This is a double Z-Stage Mount for the Vertex K8400 3D Printer.
The Acryl bottom panel is Lasercut, the dxf/stp file is provided.
The Aluminium Base is also Lasercut, the dxf/stp file is provided.
The advanteges compared to the original constructions are:
++ More stable
++ No Z-Wobbling
++ 20mm more Buildspace in Z direction
What to do?
Print:
All parts
Buy:
4x 290mm 8mm H7 Rod
4x 46mm Linear flange bearing LMK8LUU
2x TR8x1.5 Nut -->https://www.thingiverse.com/thing:2542810
2x 290mm JFRM TR8x1,5 Trapezoidal Screw
16x M3x4 Screws
8x M3x8 Screws
6x M5x12 Screws and Nuts
2x M5x30 Flat Head Screws
1x 900mm GT2 Belt
3x 20 Tooth GT2 Pully 5mm
2x GT2 6mm Idle Pulley
2x F625ZZ Flange Ball Bearings 5x16x5mm
Assemble:
Put it all together, it's not hard.
The Acryl bottom panel is Lasercut, the dxf/stp file is provided.
The Aluminium Base is also Lasercut, the dxf/stp file is provided.
The advanteges compared to the original constructions are:
++ More stable
++ No Z-Wobbling
++ 20mm more Buildspace in Z direction
What to do?
Print:
All parts
Buy:
4x 290mm 8mm H7 Rod
4x 46mm Linear flange bearing LMK8LUU
2x TR8x1.5 Nut -->https://www.thingiverse.com/thing:2542810
2x 290mm JFRM TR8x1,5 Trapezoidal Screw
16x M3x4 Screws
8x M3x8 Screws
6x M5x12 Screws and Nuts
2x M5x30 Flat Head Screws
1x 900mm GT2 Belt
3x 20 Tooth GT2 Pully 5mm
2x GT2 6mm Idle Pulley
2x F625ZZ Flange Ball Bearings 5x16x5mm
Assemble:
Put it all together, it's not hard.
