Vent or drain cap with integral screen by RebbePete
by Thingiverse
Last crawled date: 4 years, 1 month ago
A parametized OpenSCAD model of a vent or drain cap with an included screen on the end. Parameters include:
Throat (non-screened end) depth, height and opening
Mouth (screened end) depth, height and opening
Screen size and opening
Note that it has only been run with the mouth bigger than the throat. If you need it the opposite way, you may need to tweak the model.
Note also that this thing takes quite a long time to render in OpenSCAD (about 30 minutes on an i5 under Win7) and to slice (about an hour and a half with Skeinforge on Ubuntu).

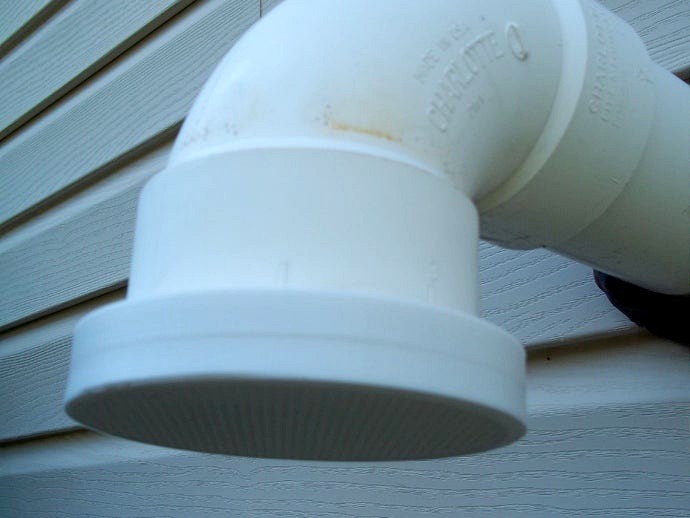

As posted, it has a 5 inch mouth and a 3.5 inch throat. All output dimensions are in millimeters.
