Best Valentine Day wishes.
This is a test of the gearify software. http://gearifysoftware.com/
Because I have only a trial version, accuracy is not very good.
This software normally runs in windows, but my test is in Linux/wine
This is not a perfect design. It is a step to learn how to make special gears.

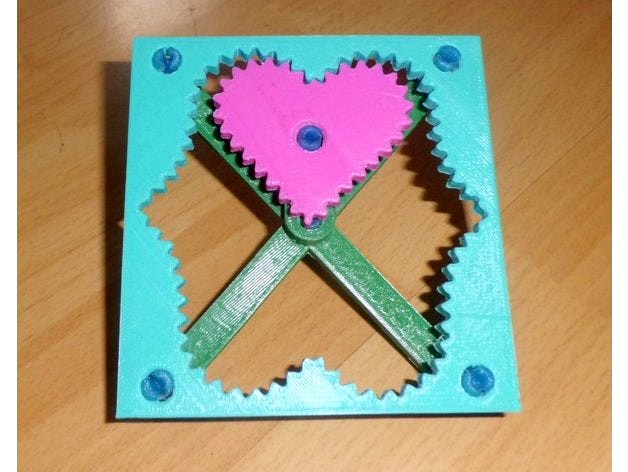

Long pins at the 4 edges, short pin to the heart gear, crank to the midpoint.
Print in PLA. Cut or sandpaper the edges at the printbed side.
Lubrificate the moving points with a little of vaseline. Maybe you need to glue the fixed joint points.
more about the design process here:https://www.thingiverse.com/thing:2791098
more valentine things:https://www.thingiverse.com/thing:3243865https://www.thingiverse.com/thing:3219527
