Vacuum cleaner tool for radiators by partykongenbaddi
by Thingiverse
Last crawled date: 4 years ago

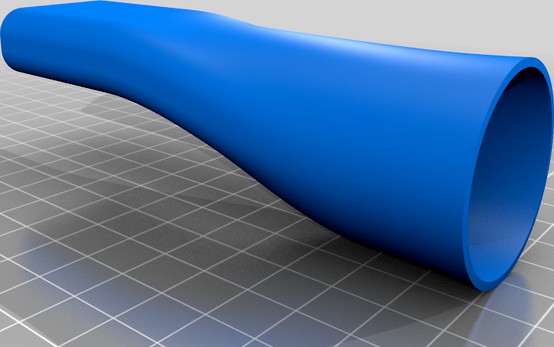

Tool to clean into and behind my radiator.
The mouthpiece has an inner diameter of Ø35mm which narrows to Ø33,5mm 20mm in. This fits many types of vacuum cleaner hoses.
Print as many extension pieces as needed to get the wanted length. They fit together snuggly but if they don't fit, it might be because you are printing too fast. With a 0,4mm nozzle and 0,35mm layer heights, 60 mm/s perimeters were fine for me but 85mm/s were too much for it to hold the tolerances required for assembly.
The endpiece is to suck air from the sides which may be better for when the cobweb and dust are stuck to surfaces that are parallel to the axis of the tool.
This tool is also a good range extension for removing cobweb in the corners of the ceiling.
The mouthpiece has an inner diameter of Ø35mm which narrows to Ø33,5mm 20mm in. This fits many types of vacuum cleaner hoses.
Print as many extension pieces as needed to get the wanted length. They fit together snuggly but if they don't fit, it might be because you are printing too fast. With a 0,4mm nozzle and 0,35mm layer heights, 60 mm/s perimeters were fine for me but 85mm/s were too much for it to hold the tolerances required for assembly.
The endpiece is to suck air from the sides which may be better for when the cobweb and dust are stuck to surfaces that are parallel to the axis of the tool.
This tool is also a good range extension for removing cobweb in the corners of the ceiling.
