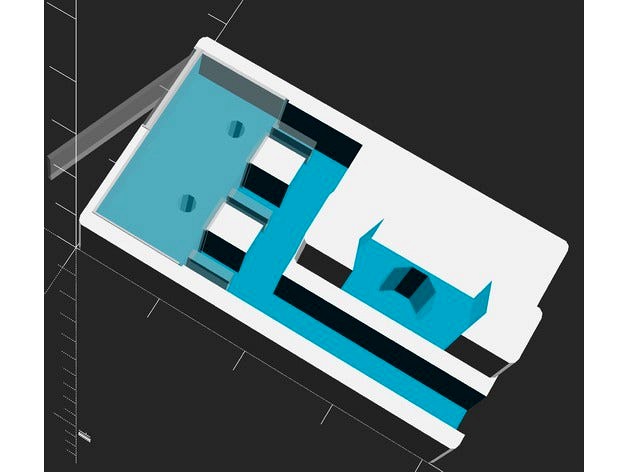

V4 microswitch mount by robmlr
by Thingiverse
Last crawled date: 5 years, 2 months ago
This is my overengineered project to learn OpenSCAD and MakerBot Customizer. It will hold a V4 microswitch on to V-slot and presumably T-slot or any flat surface with a screw hole.
You can choose switch orientation, which side(s) or rear corner(s) you want the wires to exit from, mounting behind the switch or to an adjacent rail, and various other things I thought to try while adding switches to my printer. If the customizer options are insufficient, there are more variables in the OpenSCAD code to tweak - and it is certainly possible to find configurations which are not useful.
