USBasp-BAITE-Case by OderWat
by Thingiverse
Last crawled date: 5 years, 3 months ago

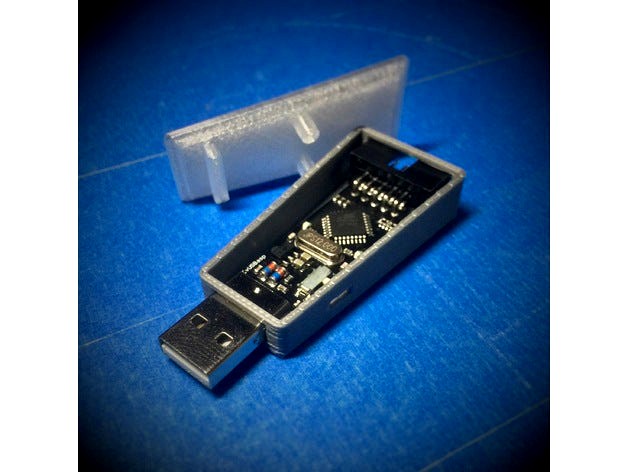

The case is for a special USBasp (BAITE) which has a little dip switch for changing voltage!
The lid is meant to be printed in a translucent and the case in an opaque material. You need to glue them together after inserting the device. It should fit and after glueing it should not move inside anymore. Make sure your printer is calibrated very good!
You should choose supports for the front and back holes to print clean.
Note: You can partial cover the translucent area to focus the LED. You could even use an opaque material for the lid and drill two holes to see the LEDs below when the case is closed.
This is my very first design and was made with Fusion360. I am sure I did it "wrong". But I am very proud on my first working and useful design :)
The case is also available at GrabCad
The device can be ordered here: Aliexpress or Amazon Germany
You can also get the Model as Fusion 360 File
