Universal Wemos D1 Box by wimkuilman
by Thingiverse
Last crawled date: 5 years, 8 months ago
Like most things, the idea for this box came from my own frustration of creating a new box for every ESP8266 project.
I decided to create a small case that satified each of my needs.

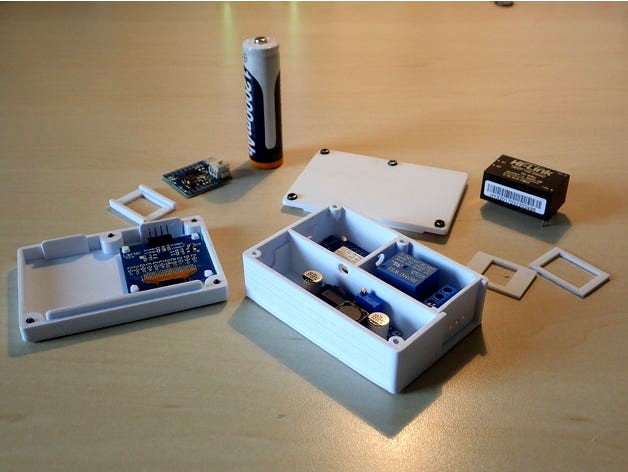

The result is a case, that can house a LM2596 DC DC converter, a 18650 battery or a Hi-Link module for use as power supply.
The Wemos D1 is in a separate compartment and any Wemos shield (or other sensor) in a third compartment. This compartment can be closed with a small plate, that you can slide into place. This plate can be customized to fit a sensor, pushbutton, just slits for an internal sensor, wires (like in the photo for a relay shield) or ...
This is the only part I have to design for a new project.
For use with the 18650 battery I use a Wemos battery shield, that can be soldered piggyback on de Wemos D1. There is no room for connectors, so I use a little spacer between the two components. This prevents the two from touching and it takes the battery shield at the correct height for the opening for the micro-usb connector. (Which can be closed with a small clip if you don't use the battery shield.)
Great ... until I discovered it didn't have room for a OLED 1306 I wanted to use.
So I made a second lid, that can hold the OLED. (And pushbuttons?)
And where do the cables for the DC DC converter or the Hi-Link module enter the case?
I leave that up to you. ;-)
In most cases it will be a round hole you can easily drill in one of the three walls.
(The battery-clip holders are only 1 mm thick: you can easily break them out.)
