Universal Ps4 Phone Mount by Cyberzoid
by Thingiverse
Last crawled date: 4 years, 8 months ago

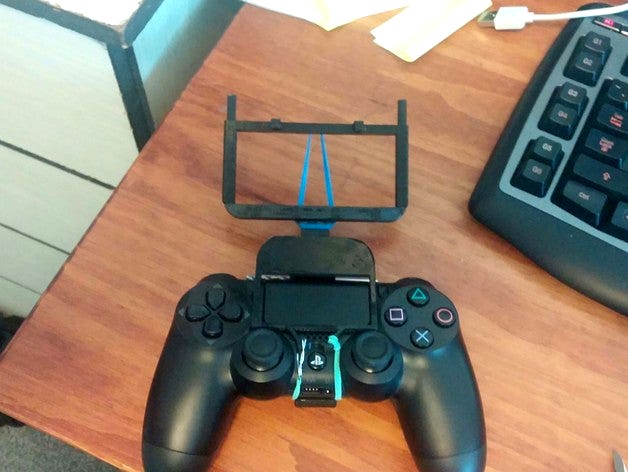

This is a Very Very fast remix of http://www.thingiverse.com/thing:575680 to fit both my phone and my roommate's. So I took the universal approach.
Note I did this in under 45 mins with another 30 mins for touch ups. I didn't put much time to make it look nice. I just wanted a phone mount.
You'll need another rubber band.. sorry :) See maniacal laugh here: http://i.imgur.com/yLwTABl.gif
As well as a M3x25 blot & nut. I was out so I used a drill bit to test it out :D
I also crafted a quick disconnect out of a small paperclip.
Some specs:
Min phone height: 45mm
Max phone height: ~90mm
Max phone thickness: 10mm (oops too thin for my phone. will revise later tomorrow.)
Min phone thickness: 8mm Use a sponge or foam to take up slack for thinner phones..
Files
My Inventor parts are included.
As well as STEP file exports
I also Included the 2 original unchanged ps4 brackets so you don't have to hunt for them :)
I'm up for suggestions and I hope this is useful for someone.
Update 1:
Added V2
I haven't printed this version yet as I can make the first work (barely). This version should be a little better. Let me know.
Top holder converted to a slider allowing for devices 0-20mm thick.
Extended bottom by 2mm and adjusted the tabs. Picture with dimensions attached.
New specs:
Min phone height: 45mm (unchanged)
Max phone height: ~90mm (unchanged)
Phone thickness top slider: 0-20mm
Max bottom phone thickness: 12.5mm
Min bottom phone thickness: 11mm Use a sponge or foam to take up slack for thinner phones.
Also added a Ps4_Mount_Lower_V2_Longer that has twice as long rods (+60mm) for tablets. Strength not guaranteed, but can be useful for small tablets. Theoretical max height: 150mm
