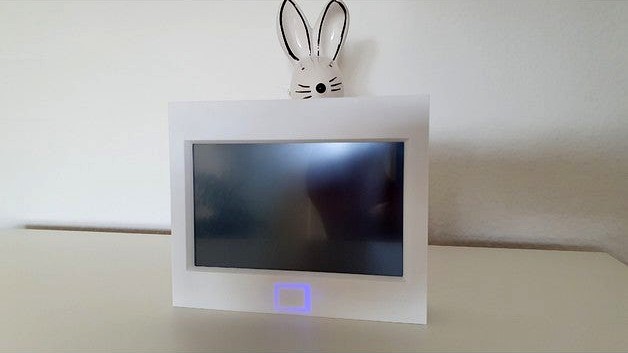

Universal Pi LCD box by sniperKE
by Thingiverse
Last crawled date: 5 years, 9 months ago
I used base design from @wabbitguy and modified a bit :) Thank you!
Top cover is very tight fit exactly for my LCD display which is: https://www.aliexpress.com/item/32772218955.html?spm=a2g0s.9042311.0.0.27424c4d5KBpcS
Bottom case modified inner size to shift display a bit, added modded holes ...
Stylus needs some sanding to fit nicely
Screw spacers are for 2.5X10 mm screws.
Print with solid infill around place of touch switch so light from led will not shine through the inner walls.
Its powered via DC voltage converter and USB C
Touch switch + RGB led + some FETs to control light and LCD backlit.
Hope u enjoy!
Martin
