First thing: PLEASE REPORT ME IF IS SOMETHING BAD (for reconstruction, correction or something else)
Universal for all 30cm 12V/24V LED lights with honeycomb holes for better cooling...
I use this light 12V:https://www.aliexpress.com/item/8520-SMD-30-50cm-21-36-LED-Strip-Light-Aluminum-Case-Milk-Clear-Hard-Cabinet-LED/32773926762.html?spm=a2g0s.9042311.0.0.27424c4drRL2UT
Compatibille with original Prusa i3 MK3 filament holder, and holder from "MartinMajewski" (https://www.thingiverse.com/thing:1832235)
What you need:
2x ARMS Left and Right (one arm mirroring)
1x Bridge
---12V/24V connector out from your PSU (i have 24V MeanWell PSU, and one DC-DC step down inverter who change to 12V, because LED strip is for 12V)

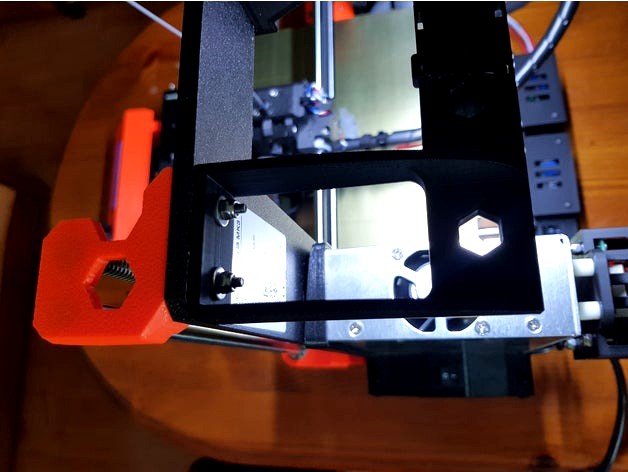

---4x...Screws M3x20mm (like original, but longer, on picture is where is mounted)
---8x...Screws M3x4mm (optional for better bridge holding, but is really not needed)
---4x...Nuts M3 with nylon lock
---4x...Washers for M3 screw (optional)
---2x/4x...Cable ties, glue, or tape - your choice (on the arm is montage holes for cable ties, or stick with glue, or with double sided tape)
THAT IS ALL FOR EASY CREATE LED LIGHT HOLDER...
UPGRADES: (your choice, but you need better electronics skills)
My light have remote control switch for switching the light in automatic (LED in red light mode, controlled with 12V photoresistor relay module), manual (LED in green mode, allways ON) and OFF mode. But this option is much complicated. You need much more things, like cables, connectors, switches, screws, nuts and many more...
Boxes is compatibile with this electronics modules:
Photoresistor module 12V:
https://www.aliexpress.com/item/12V-photoresistor-relay-module-light-detect-sensor-with-timer-car-light-control/32292910519.html?spm=a2g0s.9042311.0.0.3c164c4dhyKQFD
DC-DC step down inverter module (from 24V to 12V setting):
https://www.aliexpress.com/item/XL4015-5A-High-Power-75W-DC-DC-adjustable-Step-Down-Module-LED-Voltmeter-Power-Supply-Module/2038561511.html?spm=a2g0s.9042311.0.0.3c164c4dhyKQFD
Good luck :)
