Universal ESC Protectors for miniquads
by Thingiverse
Last crawled date: 5 years, 8 months ago
Summary
I designed many ESC protectors over time but these are my favorites, especially Model A.
They are designed for Holybro F3 Metal ESC (the LED variant) but they will work with almost any ESC 17mm wide (the "NoLed" variant). It should scale nicely if your ESC is slightly thinner.
Material
If requires flexible material (TPU or Nylon) and should be printed with a 0.4 mm nozzle at most, 0.25 layer height, 40% infill, and 3 wall-line counts (1.2 mm).
Installation

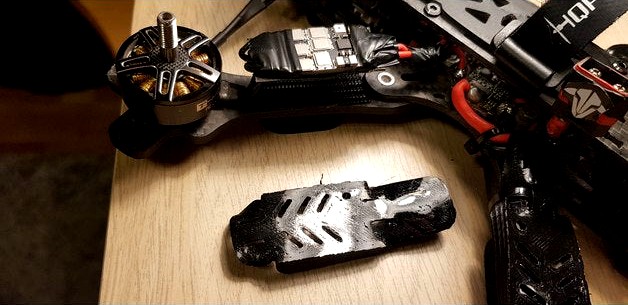

Use two thick tie wraps and hook the printed parts using from at least two from the three sets of openings provided. Insert the tie wrap like in the picture above, to have a firm grip (outside->inside->outside). Fasten the tie wrap around both ends. Cut the protector with a pair of scissors or a hobby knife to adjust its length.
Enjoy
