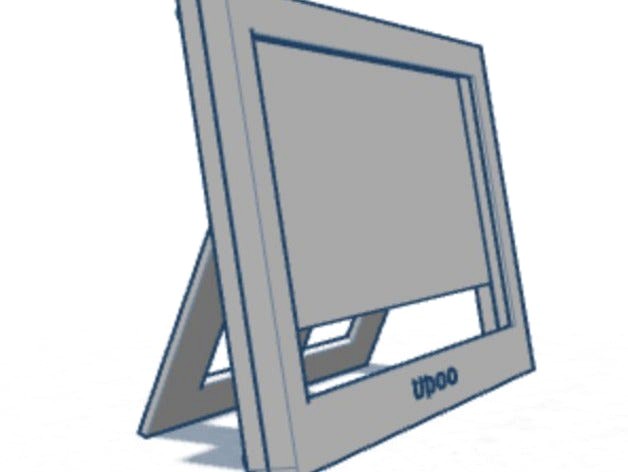

Udoo 7" Screen Case + Kickstand by mkopack73
by Thingiverse
Last crawled date: 4 years, 11 months ago
This is my attempt to design a case to hold the Udoo 7" touchscreen module.
V2.1 of the front and V2.2 of the back and Kickstand should all be working properly. I've printed this and it's really nice.
You'll want to take a drill bit to open up the holes in the back so the pegs will fit through. You also might need to gently sand the portion of the kickstand that attaches into the back so it will fit into the slot.
Finally, you might want to drill a small hole in the bottom center of the kickstand and the bottom of the back and run a small string to keep the bottom of the kickstand from sliding out too far. (or maybe one on each corner of the kickstand...)
Otherwise the screen should fit pretty snugly. I printed on a Makerbot 2X without rafts. For the front and back I didn't use supports. For the kickstand I did. Printed at .2mm per layer, 2 shells.
