TYWE3S Pogo Pin Programming Adapter
by Thingiverse
Last crawled date: 5 years, 8 months ago
I purchased an outdoor smart plug and wasn't able to get my soldering iron in to the pins. Similarly other adapters on Thingiverse were obstructed by other components that where very close to the TYWE3S module.
This adapter uses pogo pins and test leads to connect to the chip pins. The top of the bracket opposite the chip keeps the pins from pushing back away from the chip while still leaving the body of the pin accessible for the test leads.
The print isn't tricky if you have a decent printer, my printer is several years old and had its issues. I got better results printing it on its side.

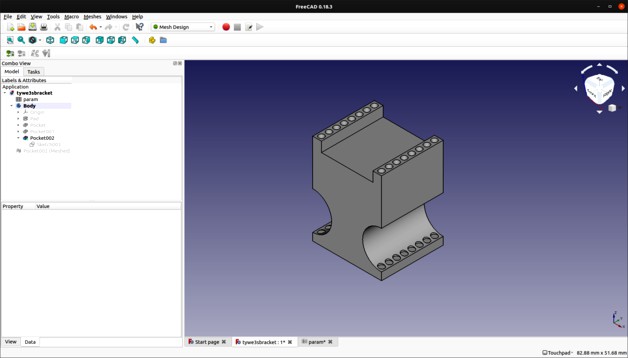

You should be able to customize this using FreeCad to fit other similar chips.
This adapter uses pogo pins and test leads to connect to the chip pins. The top of the bracket opposite the chip keeps the pins from pushing back away from the chip while still leaving the body of the pin accessible for the test leads.
The print isn't tricky if you have a decent printer, my printer is several years old and had its issues. I got better results printing it on its side.
You should be able to customize this using FreeCad to fit other similar chips.
