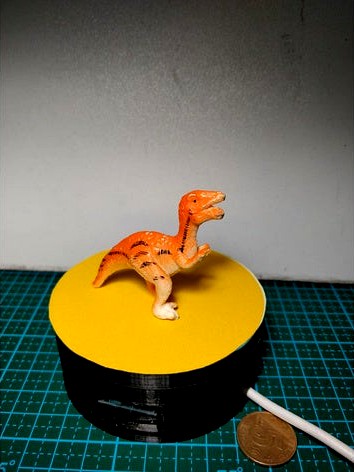

turn table for 3d scan or photo by kaka_things

Last crawled date: 4 years, 8 months ago

easy turn talbe ,three legs(M3 screw） adjust the table angle .you can infrared remote the motor .
such as:
a.512 micorstep every 5 seconds. it's very usefull for 3d scan or taking photo
b. uniform motion forever
c. go and back forever
d. reciprocating motion
support : usb serial port ,infrared ,bluetouth.
if you like ,you can do something interesting~~~~
if someone like this mainboard (powered by 5v usb 800ma or power bank),
include: 28byj motor and mainborad , infrared controll. china taobao(alibaba):https://item.taobao.com/item.htm?spm=a230r.1.14.26.43c927479vUipV&id=555141447682&ns=1&abbucket=7#detail
video test:http://cloud.video.taobao.com/play/u/13897718/p/1/e/6/t/1/40400896.mp4
controll
'CH- :turn left
'CH :stop
'CH+ :turn right
'|<< : click left
'>>| : click right
'>|| : play
'- :accelerate
'+ :decelerate
'0-4 :none
'5-9 : you can custome it.
reciprocating infrared input:
input1：102048 turn 2048 micorstep
input2：200001 one time
input3：300002 reciprocating twice
click ">||" to start.
custome key 5-9,input it :
450001
0500512
1200301
CH
402101
402208 all done
403843 assign it to num 5 key. next time you can click 5 to do same action.
scancom.py
serial port controll example .
