TTn42 / QR120 Queensland Railways (QR) QR16 Bogies
by Thingiverse
Last crawled date: 5 years, 3 months ago
For:
1:120, TT Scale on N / 9mm track.
What it is:

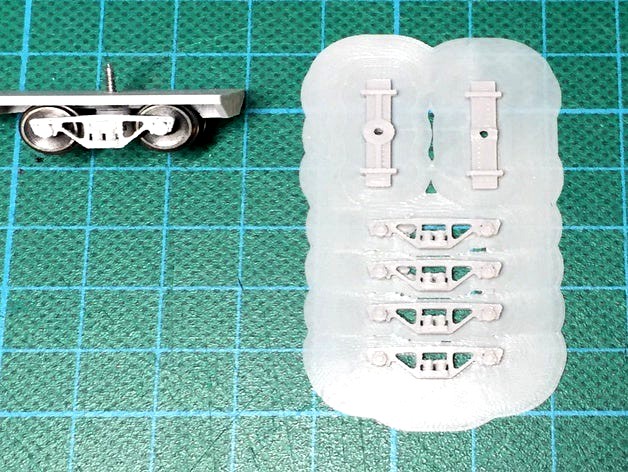

A low detail QR16 Bogie (Not up to the quality of a modern ready to run models, this is a kit!)
Additional Parts Needed:
8 x 1mm "Top Hat" Bearings - N Gauge Brass Bearing Cups / Pin-Point Brass Bearings, Shouldered Type DP09 (Got my last lot from https://dundasmodels.co.uk/)
1mm Drill to gently clean out the axle holes
7mm 009 wheels solid disc on a 15mm axle Dundas DW64 (Had to be spread a little to meet the NMRA standard)
Notes:
Use a 0.3mm Nozzle for better detail and 0.1 or 0.08mm layering
Lightly sand glue contact surfaces
Use a Gap Filling Super Glue (Zap a Gap)
The final product will depend on the quality of the printer and how well you have your settings under control.
Supplied as is, no support and no promises.
Please leave a comment if you build one!
