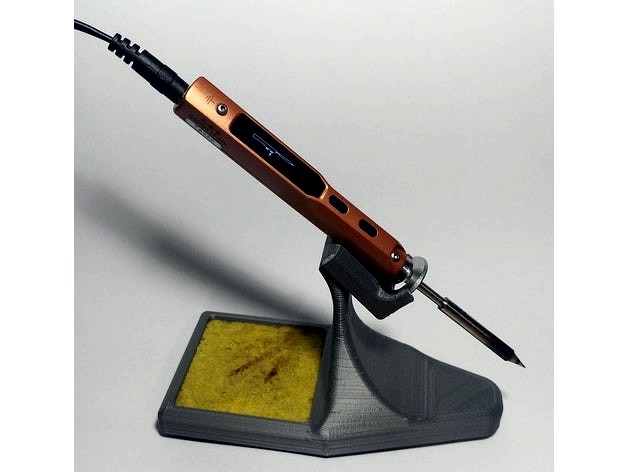

I love this little soldering iron but it doesn't fit the holder i have... so i made one.
Designed in onshape in 2 pieces. I used an M8 washer(22mm outer diameter and 8mm inner) as the point of contact which press fits into a clip. The iron is actually pretty cool up the top end there, but when putting it in and out i didn't want to have to worry about hitting plastic. I used hot glue to attach the parts but your glue of choice will work.
I added a spot for a wet sponge for tip cleaning.
this is the soldering iron: http://www.banggood.com/MINI-UpGrade-TS100-Digital-OLED-Programable-Interface-DC5525-Soldering-Iron-Station-Built-in-STM32-Chip-p-1021266.html?p=M41409102656201212CI
11/03/2017 update
Ive added a model for a wire tip cleaner holder to use in place of the sponge. As of yet it is untested as i do not have one.
This was a request from Jomaba4308
