Trinity Arduino Case 20x4 by usermod
by Thingiverse
Last crawled date: 4 years, 7 months ago

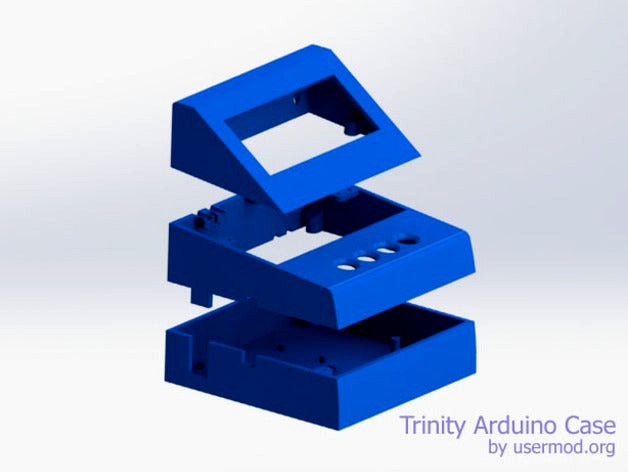

This three piece case was designed around the Arduino Uno R3, a 4x20 LCD and some buttons I mounted on a piece of perfboard.
List of parts you see mounted....
Arduino Uno R3https://www.adafruit.com/products/50
Standard LCD 20x4 + extras - white on bluehttps://www.adafruit.com/products/198
i2c / SPI character LCD backpackhttps://www.adafruit.com/products/292
1pc Blue Led Dia 10mm Cap OPEN 12V Momentary Tact Push Button Switchhttp://www.ebay.com/itm/1pc-Blue-Led-Dia-10mm-Cap-OPEN-12V-Momentary-Tact-Push-Button-Switch-/290868694686?hash=item43b9200e9e:g:IAAAAOxyVX1RyQcA
Waterproof Polarized 4-Wire Cable Sethttps://www.adafruit.com/products/744
LM2596 Step Down Power Module DC Adjustable LED Voltmeter for Arduino Raspberryhttp://www.ebay.com/itm/LM2596-Step-Down-Power-Module-DC-Adjustable-LED-Voltmeter-for-Arduino-Raspberry-/131660186249?hash=item1ea78f0289:g:twUAAOSwFGNWSO11
Dual MAX31865 PT-100 RTD to Digital Breakouthttp://www.playingwithfusion.com/productview.php?pdid=29&catid=1001
