Triangle generator (customizer) by texsc98
by Thingiverse
Last crawled date: 4 years, 7 months ago

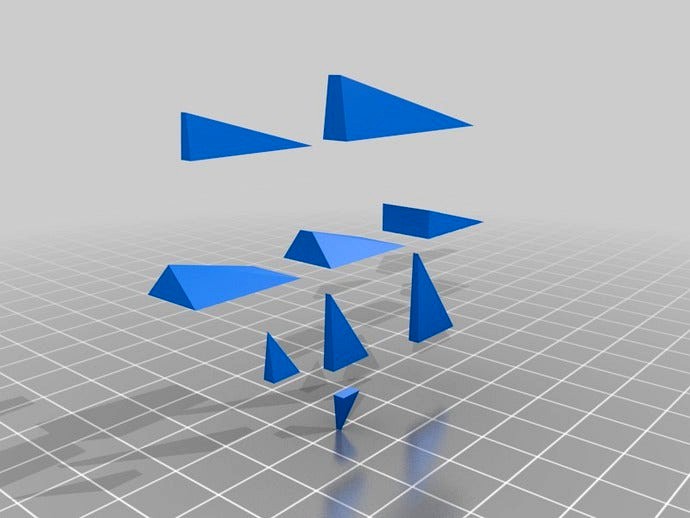

3D triangle generator creates right triangles. It lets you specify the top angle, the height, the depth, the proportion of the top depth to bottom depth, allows centering, and inverting.
It uses some good 'ole high school level math (Pythagorean Theorem & Sohcahtoa) piped into a dynamic polyhedron module I created for super fast rendering as well. No union() or difference() methods at all! :D
I created this to be able to easily create support structures in my openSCAD models for tall thin walls. By using a low upper angle and tall height it will help "brace" the wall with limited extra material if placed properly... I've uploaded the "almost" (needs testing) finished STL of the object I created the support triangles module for to give an example of how I used it :)
It uses some good 'ole high school level math (Pythagorean Theorem & Sohcahtoa) piped into a dynamic polyhedron module I created for super fast rendering as well. No union() or difference() methods at all! :D
I created this to be able to easily create support structures in my openSCAD models for tall thin walls. By using a low upper angle and tall height it will help "brace" the wall with limited extra material if placed properly... I've uploaded the "almost" (needs testing) finished STL of the object I created the support triangles module for to give an example of how I used it :)
