TRI-Copter modified Battery Cover and Bottom Frame for easy KK Mini mounting and setup, incl. a concealed Stylus pen by lemuba
by Thingiverse
Last crawled date: 4 years, 7 months ago
As you can see from the pictures, I had to "dremel/modify" the Battery Tray to be able to reach the KK Mini FC. Now with the modified parts, everything is integrated.
KK Mini sockets (30.5mm distance). Use after printing a conventional 3mm screw to drill the threads and to use short Nylon screws to screw on the KK Mini to the Frame Bottom.

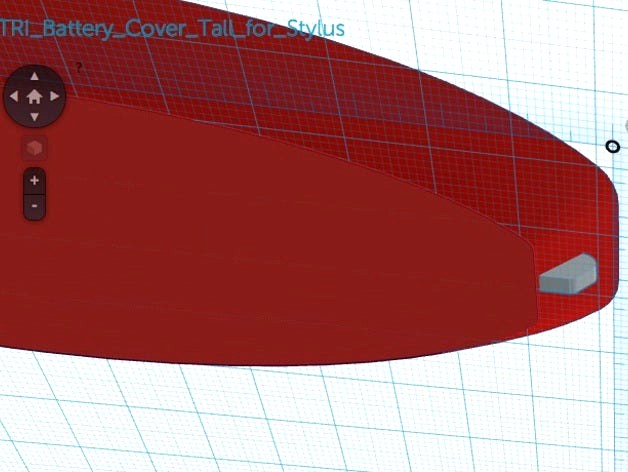

The modified tall Battery cover now able to store a concealed Stylus pen to operate the KK Mini switches.
The modified Battery Tray to reach the KK without problems.
I have placed the KK Mini sockets a little bit right hand offset from the center. This to enable an easier wiring/cable bypassing left hand from the Tail Motor.
Have fun,
Matthias
