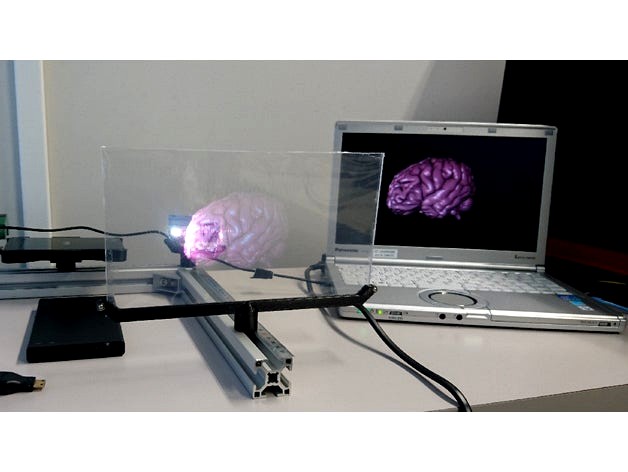

Transparent Screen System (1st prototype) by komix
by Thingiverse
Last crawled date: 4 years, 8 months ago
These are parts of a transparent screen system.
Whole system is consist of follows:
Acrylic plate (125x225x3 mm)
Agricultural polyethylene sheet: No.110101http://www.miyata-bussan.jp/shop/vinyl/muji.html
Vinyl chloride mirror: EB232M-14（2x200x300 [mm]）https://www.amazon.co.jp/%E5%85%89-%E5%A1%A9%E3%83%93%E6%9D%BF-%E3%83%9F%E3%83%A9%E3%83%BC-2%C3%97200%C3%97300mm-EB232M-14/dp/B00AQBAZK8
Projector: 400-PRJ020http://direct.sanwa.co.jp/ItemPage/400-PRJ020
Aluminium frame (30x30 mm)http://jp.misumi-ec.com/vona2/detail/110302686450/?SpecP=110302686450
Conditions of 3D printing: ABS, 0.4 mm pitch
