Every boy need a toy. Old boys use computers, small boys needs something simple.
This time is not so simple.
You can
print tracks crossed at various angles and number with self adjustable lentgh (not work in small angles)
print 90 degrees curves from 1 to 4

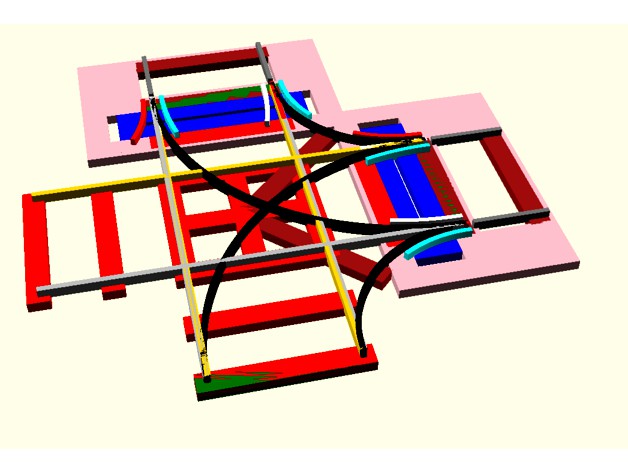

print tracks crossed at 90 degrees with connecting curves from 1 to 4 with double switches and clamps
print variable angled curve alone or connected to track or crossed tracks
I included *.stl in most used angles 30,45,60 but ...
If You want to print other combinations (it is customizable), sorry, but You have to:
download Template Shapes_Text https://www.thingiverse.com/thing:4863092 and open in OpenScad
copy template code (included) and paste in show area. Then hide customizer plate,
enter template number (121) in Customizer Show and scroll down to the template.
change parameters to get what You want
Some cuts will be needed, sorry. Best way for clamps is print set 4 clamps and cut acc.to picture.
Semaphore switch will be done later, as mod to this design. For now it's enough. It was hard week.
This design is effect of playing with Template Shapes_Text https://www.thingiverse.com/thing:4863092
and will be included in next database release.
enjoy!
